PCR43304R & PCR43304RE

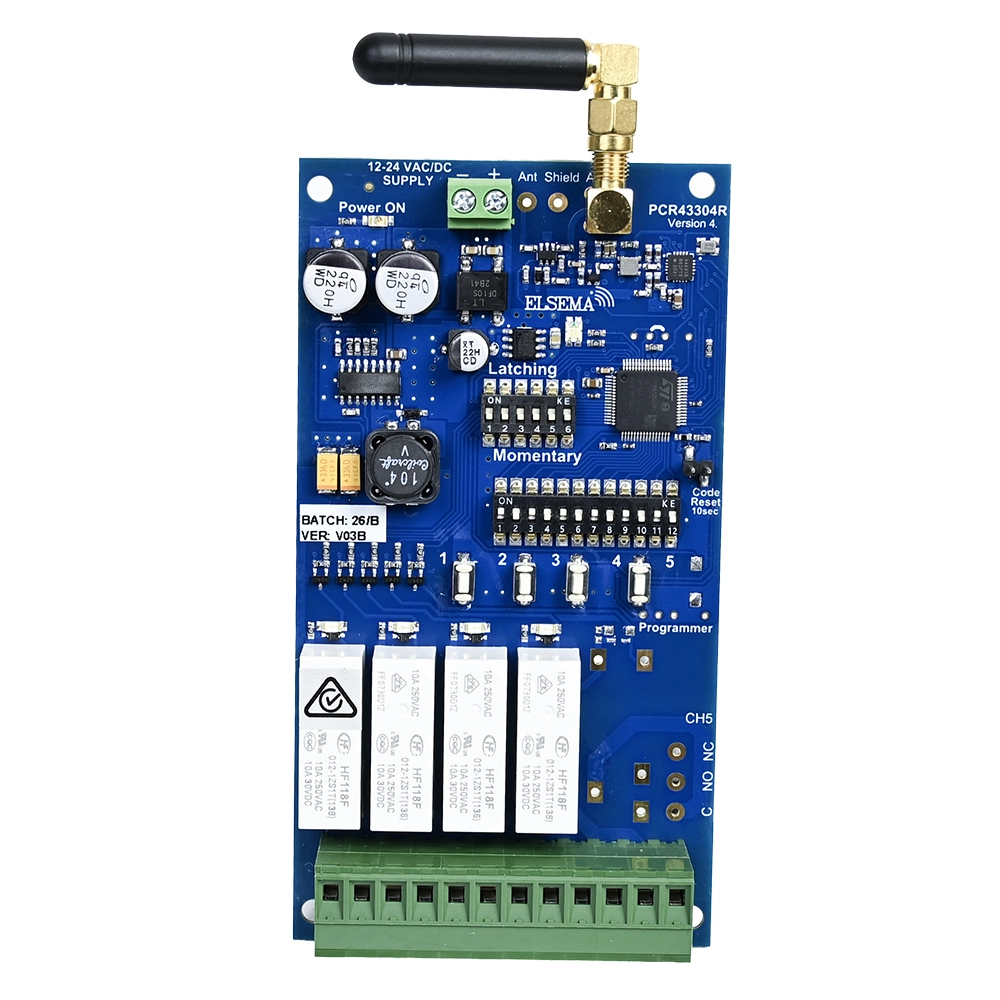

Four Channel Penta Series Receiver. PCR43304R

The PCR43304R receiver is a versatile 4-channel device designed to operate seamlessly with both “PentaFOB® and “PentaCODE® remotes. This receiver’s four-channel functionality allows you to manage up to four separate devices, making it an excellent choice for controlling automatic gate openers, garage door systems, lighting, and other wireless communication needs. Its compact design ensures that it can be easily installed within a wide range of systems, offering efficient and reliable signal transmission.

One of the key advantages of the PCR43304R is its support for the PentaCODE® dual coding system. This system gives installers the flexibility to choose between the conventional 12-way dip switch coding method and a more advanced encrypted coding option with over 17 billion possible combinations. This dual coding feature ensures that the receiver can accommodate varying security requirements, from basic setups to highly secure configurations.

For those who opt for the 12-way dip switch method, the setup process is simple: align the dip switch positions on both the remote and the receiver. This method is user-friendly and dependable, making it ideal for applications where straightforward operation is desired. For applications requiring enhanced security, the encrypted coding option is an excellent alternative. To enable this mode, simply switch all the 12-way dip switches to the OFF position, automatically activating the encrypted mode. Detailed instructions are provided to guide users through this process, ensuring a secure and hassle-free setup.

In conclusion, the PCR43304R receiver offers robust four-channel functionality combined with flexible coding options, making it a dependable and adaptable choice for a variety of wireless control applications.

Technical Specifications

Frequency
433MHz License free band.
Frequency Hopping Spread Spectrum.

Application
Domestic use

Supply Voltage
12 – 24 Volts AC/DC

Coding
Encrypted coding or 12-way dipswitch

Antenna
433MHz Series

Output Type
Voltage free relay output

Output Modes
Momentary & Latching

Enclosed Version
PCR43304RE

Storage Capability
Unlimited Remotes

Dimension
130 x 70 x 27 mm

Compliance
