MCR91516R & MCR91516SS

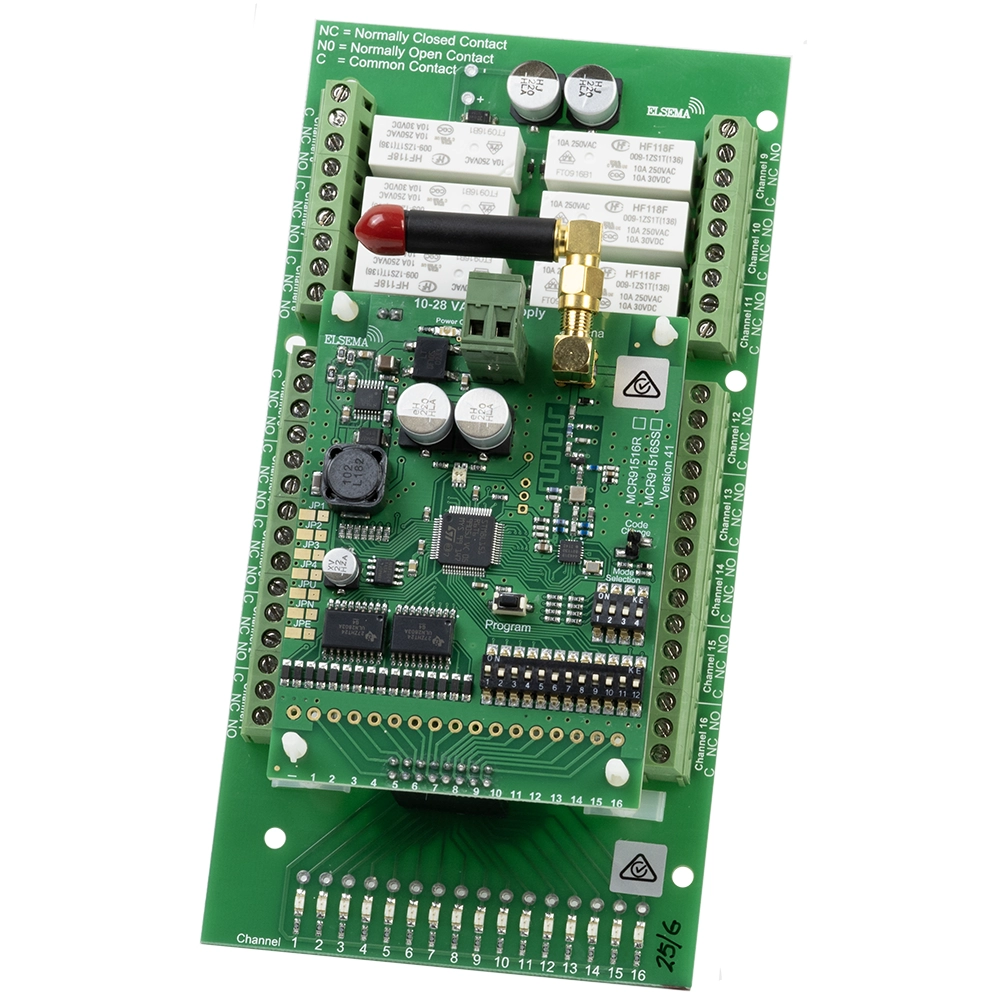

Sixteen Channel Multicode Series Receiver. MCR91516R
The MCR91516R features 16 relay outputs, while the MCR91616SS offers 16 open collector outputs. Each version is tailored to meet specific requirements, providing versatile solutions for a broad range of applications. The MCR91516R and MCR91616SS are advanced 16 channel receivers available in multiple versions to suit various industrial and commercial needs.
Both the MCR91516R and MCR91616SS utilize cutting edge Multicode Technology (MCT), which provides dual digital coding options. The receiver supports encrypted coding for high security environments or a 12-way dipswitch for standard applications. This dual coding capability ensures flexibility and adaptability, making these receivers suitable for both general and high security uses.
The sophisticated integration of Frequency Hopping Spread Spectrum (FHSS) technology with MCT enhances the performance of these receivers. FHSS, a technology frequently employed in high end military and medical equipment, delivers superior resistance to interference and eavesdropping. This advanced technology ensures reliable communication and robust performance.
Both receivers are designed to be user friendly and efficient, combining the latest technology with ease of use. They are ideal choices for applications where reliability, security and advanced features are essential.
Technical Specifications
Frequency
915MHz Licence free band
Frequency Hopping Spread Spectrum
Applications
Click here
Usable Transmitters
Multicode series
Supply Voltage
12 – 24 Volts AC/DC
Coding
Encrypted coding or 12-way dipswitch
Antenna
915MHz Series
Output Type
MCR91516R: Relay output
MCR91516SS: Open collector
Output Modes
Momentary
Latching
Enclosed Version
MCR91516RE
Storage Capability
Unlimited Remotes
Dimension
185 x 94 x 55 mm
Compliance
Click here
