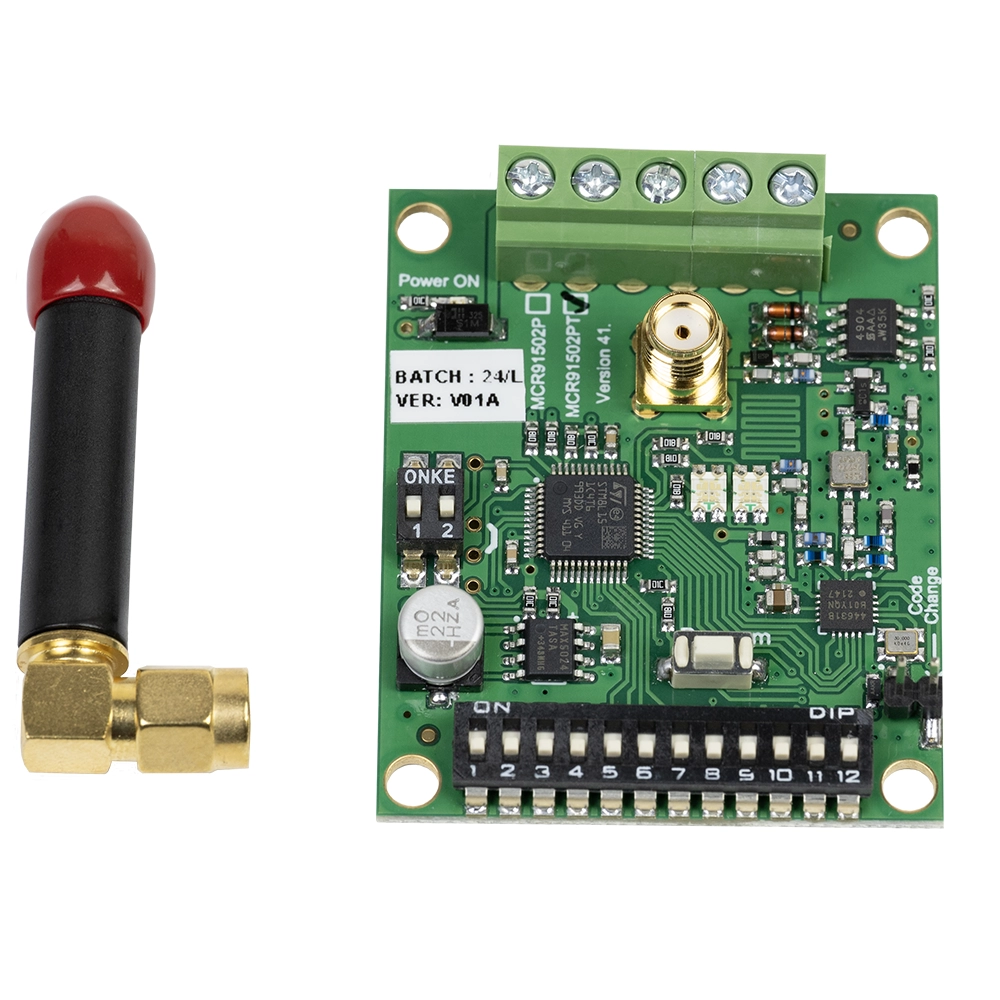

MCR91502P & MCR91502PT

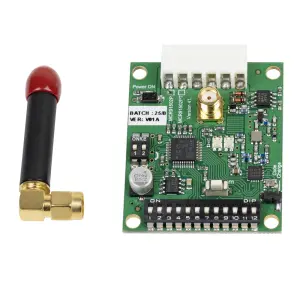

The MCR91502P model is designed as a plug-in type, facilitating quick and easy installation. For those requiring a more secure connection, the MCR91502PT version includes a screw terminal block, providing a stable and reliable connection for more demanding setups.

This model is our most compact receiver, measuring just 55 x 44 x 13 mm. Despite its small size, it is exceptionally powerful, leveraging the latest Mosfet technology to deliver two high-performance outputs. Each output is capable of handling a high switching current of 2 Amps at 40VDC, ensuring reliable performance even in demanding applications.

The receiver incorporates advanced Multicode Technology (MCT), which offers dual digital coding options to meet diverse needs. With MCT, users can choose between encrypted coding for enhanced security  or a 12-way dipswitch for standard applications. This versatility allows the receiver to adapt to a range of environments, from general use to those requiring stringent security measures.

The sophisticated integration of Frequency Hopping Spread Spectrum (FHSS) technology alongside MCT enhances the receiver’s functionality. FHSS is a technology often found in high-end, expensive equipment used in military and medical fields. It provides exceptional resistance to interference and eavesdropping, ensuring reliable and secure communication.
