GLR43301240 & GLR43301240E

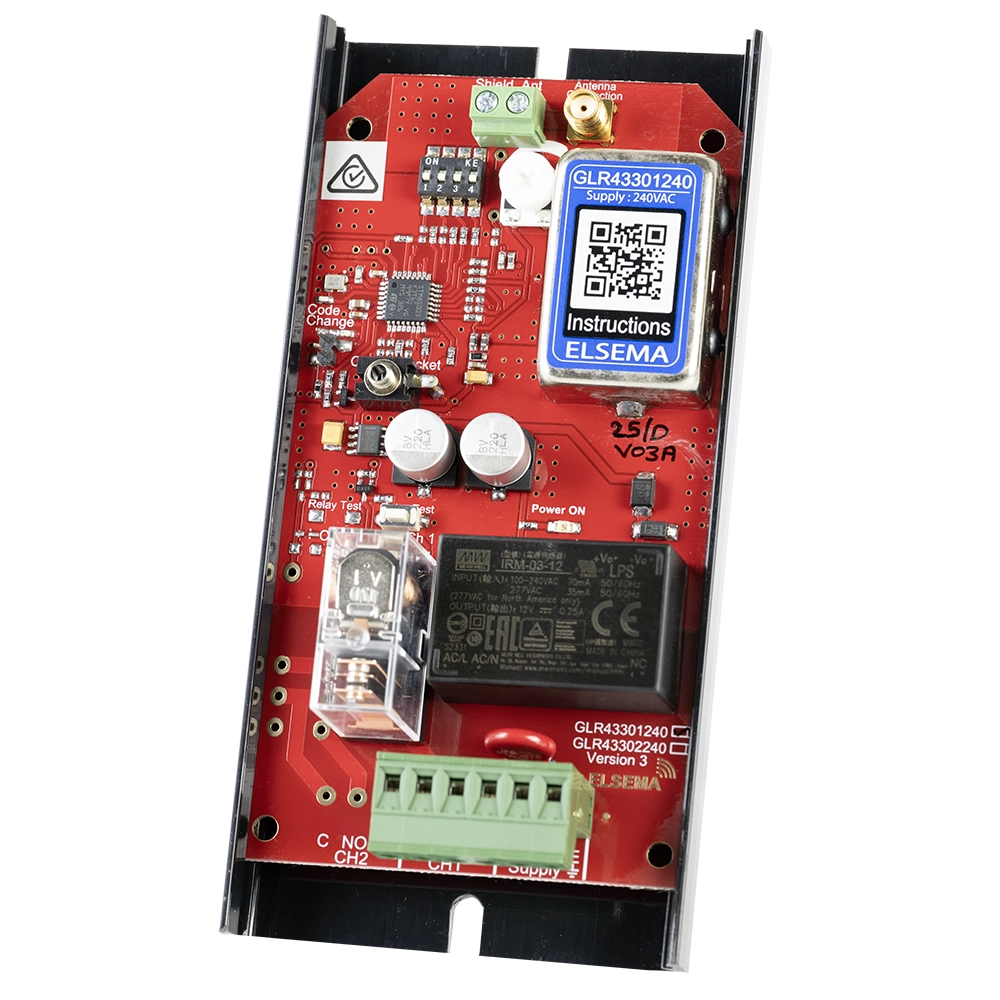

One Channel 433MHz Gigalink® Receiver. GLR43301240
The GLR43301240 Gigalink® receiver is specifically designed for systems that require a direct connection to a 240VAC mains supply, offering a reliable and consistent power source. This receiver offers user-friendly features that enhance both its functionality and ease of use. An LED lights up when the relay is “On,” clearly indicating the relay status and providing immediate visual confirmation of activation. This is particularly useful for troubleshooting.
One of the standout features of the GLR43301240 is the versatility of its relay operation modes. The relay can be configured to function as momentary, latching, or with a delayed off setting. This flexibility makes the GLR43301240 adaptable to various application needs.
Additionally, the receiver features a power “On” LED, providing a crucial diagnostic tool that confirms the correct supply voltage is connected.
Security is a top priority in the design of the GLR43301240. It is equipped with an advanced micro-controller capable of storing an unlimited number of transmitters, each protected with an encrypted 32-bit digital code.
For ease of setup and configuration, the GLR43301240 comes with the Gigalink® programming cable, allowing for quick and efficient programming. This makes it simple to integrate the receiver into any existing system, whether for industrial or commercial applications.
Technical Specifications
Frequency
433MHz License free band
Application
Industrial or Commercial use
Usable Transmitters
Gigalink® series
Supply Voltage
240 Volts AC
Coding
Encrypted coding
Antenna
433MHz Series
Output Type
Voltage free relay output
Output Modes
Momentary, Latching & Delayed Off
Enclosed Version
GLR43301240E
Storage Capability
Unlimited Remotes
Dimension
130 x 70 x 37 mm
Compliance
Click here
