FOB43308H, FOB43304H & FOB43302H

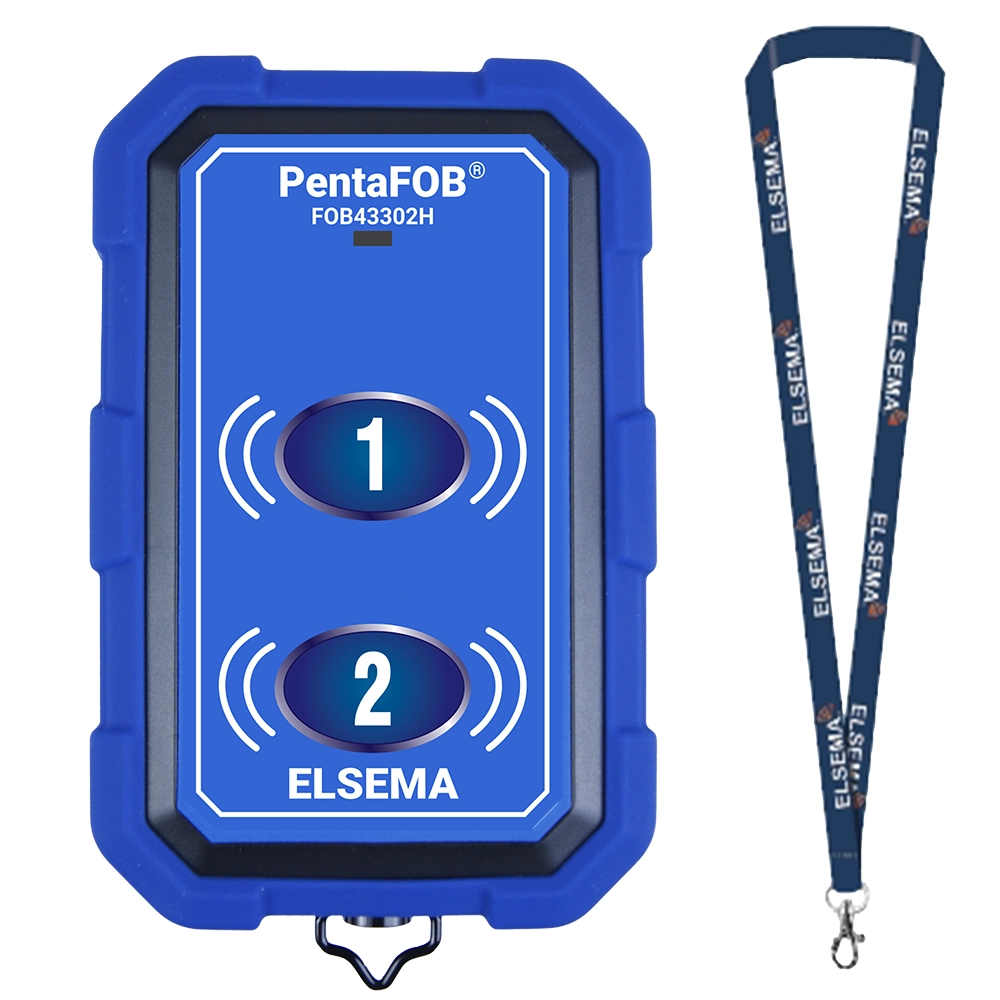

Handheld Waterproof Remote Controls - PentaFOB® Series
The PentaFOB® handheld remote controls are designed for seamless use with PCR series receivers, delivering rugged, dependable wireless control across a wide range of industries. From tow trucks, tilt-tray trucks and forklifts to tractors, agriculture and mining operations, PentaFOB® remotes are trusted wherever reliability matters most.
Available in 8, 4 and 2 button models, these waterproof remote controls give you the flexibility to operate multiple functions from a single handset, whether it’s lifting, tilting, locking or switching equipment ON and OFF. Using advanced Frequency Hopping Spread Spectrum (FHSS) technology, these remotes deliver exceptional security. Every time you press a button, the encrypted signal is broadcast across five different frequencies at once.
Built to withstand tough conditions, these waterproof remote controls comes IP66 rated with a protective rubber boot and a lanyard for easy carry and quick access. Dust, dirt, water and harsh environments are no problem, these remotes are built to last.
Security is built-in with advanced rolling code encryption, offering over 17 billion unique combinations to keep operations safe from interference or unauthorised control.
Whether on the job site, in the paddock or out on the road, PentaFOB® waterproof remote controls give you the strength, reliability and peace of mind you need for everyday operation.
Technical Specifications
Frequency
433MHz Licence free band
Frequency Hopping Spread Spectrum
Applications
Click here
Usable Receivers
PCR series
Power Requirement
2 x AAA battery (Not Included)
Coding
Encrypted coding
Operating Distance
Up to 400 metres
Low Battery Indicator
Yes
Dimension
126 x 80 x 20 mm
Custom Label Design
Yes. MOQ 100 pcs
Channel Options
8, 4 & 2
Accessory
Rubber boot & lanyard included
Compliance
Click here
Elsema: Frequently Asked Questions
What is the Elsema FOB43308H?
The FOB43308H is a heavy-duty, 8-button handheld remote control from the PentaFOB® series. It is specifically designed for industrial and demanding environments such as concrete pump trucks, tilt-tray tow trucks, water cart trucks, winch control, construction, and mining.
What models are available in the PentaFOB® Handheld series?

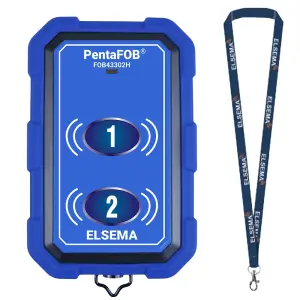

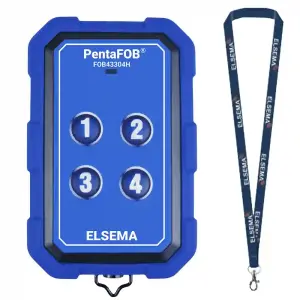

The series includes three main models: the FOB43302H (2 buttons), the FOB43304H (4 buttons), and the FOB43308H (8 buttons). These are designed for industrial applications requiring multiple control functions from a single rugged handset.
What makes the PentaFOB® Handheld series Industrial Grade?
The PentaFOB® Handheld series is built for harsh environments. They feature an IP66-rated waterproof case, an ergonomic anti-slip rubber boot for impact protection, and a sturdy lanyard to prevent accidental loss or drops on job sites.
How does the Frequency Hopping Spread Spectrum (FHSS) technology work?
This remote uses FHSS technology to ensure high security and reliability. When a button is pressed, it transmits the encrypted signal across five different frequencies simultaneously. This prevents the signal from being jammed or interfered with by other wireless devices.
What is the operating range of the FOB43308H?
The FOB43308H offers an operating range of up to 400 metres when used with compatible PCR series receivers. The actual range may vary depending on building structures and the type of receiver antenna used.
What type of batteries does the FOB43308H use?
The FOB43308H is powered by two AAA batteries. These are easily replaceable and provide a battery life of up to 1.5 years with average use. The remote also features a low-battery indicator to notify you when it needs to be replaced.
Can I operate the remote while wearing thick safety gloves?

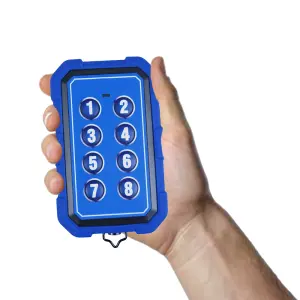

Yes. The buttons are specifically designed as large raised tactile switches. This ensures that operators in mining, construction, or warehouse environments can easily feel and activate the buttons without needing to remove their industrial gloves.
Which receivers are compatible with the FOB433 series?
The FOB43308H is fully compatible with all Elsema PCR series 433MHz Penta receivers. This includes 1, 2, 4, and 8-channel versions, as well as IP-rated and 240V supply variants.
Is there a way to program all buttons at once?
Yes, when using the 8-channel receiver (PCR43308R), you can use Multi-Channel Programming. By holding program buttons 1 and 8 on the receiver and pressing button 1 on the remote for two seconds, all buttons are synchronized to their respective channels in one step.
Can I program one button to multiple receivers?
Yes, each button on the FOB43308H can be programmed to a specific channel on a receiver. You can assign one button to activate multiple relay outputs across different receivers, or use different buttons for entirely separate pieces of machinery.
