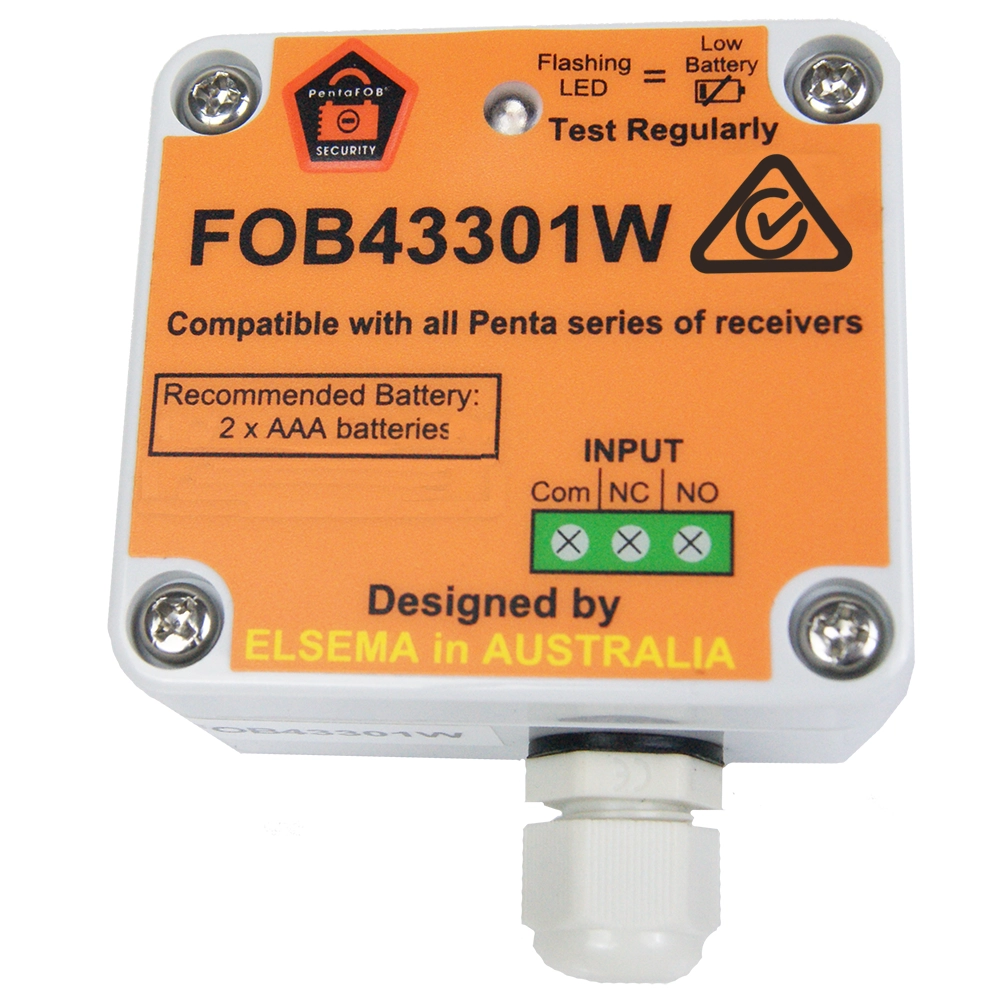

FOB43301W
433MHz PentaFOB® Transmitter with External Inputs
The FOB43301W is a battery operated, single channel PentaFOB® transmitter with external inputs. It’s designed to work with inputs from external switches or buttons, allowing users to manually trigger the transmitter’s signal. This input switch can be either Normally Open and Normally Closed type. This feature makes the FOB transmitter suitable for scenarios requiring hands-on control over signal transmission, including remote control setups, gate automation, or industrial automation via PLC control.
The inclusion of an external button serves as a manual trigger, enabling the device to send signals to receivers or control systems upon activation. This FOB transmitter with external inputs, is easy to install and offers increased efficiency and adaptability, guaranteeing smooth operation. Furthermore it is an optimal choice for locations where cable installation is challenging, providing a versatile solution for innovative control needs.
The FOB43301W (FOB transmitter with external inputs) is compatible with all PCR series receivers, ensuring broad application potential.
Technical Specifications
Frequency
433MHz Licence free band
Frequency Hopping Spread Spectrum
Applications
Click here
Usable Receivers
Penta series
Supply
2 x AAA battery
Coding
Encrypted coding
Operating distance
Up to 100 metres
Custom Label Design
Yes. MOQ 100 pcs
Channel Options
1
Compliance
Click here
Elsema: Frequently Asked Questions
What is the Elsema FOB43301W?
The FOB43301W is a battery-operated, single-channel PentaFOB® transmitter designed with external inputs. Unlike standard handheld remotes, this device allows users to connect external switches or buttons to manually trigger a wireless signal to a receiver.
What type of external switches can be connected to this transmitter?
The device is highly versatile and supports both Normally Open (NO) and Normally Closed (NC) input types. This flexibility makes it compatible with a wide range of industrial switches, limit switches, and PLC outputs.
What is the benefit of the Frequency Hopping technology?
The FOB43301W uses PentaFOB® technology, which employs 5 different frequencies for frequency hopping. This prevents interference and jamming, ensuring that the signal reaches the receiver even if one or more frequencies are jammed.
Which receivers are compatible with the FOB43301W?
The FOB43301W is fully compatible with all Elsema PCR series receivers and the broader Penta series range. It is designed to integrate seamlessly into existing Elsema wireless ecosystems.
What is the typical operating range of the device?
Under standard conditions, the FOB43301W offers an operating distance of up to 100 metres. Note that environmental factors such as physical barriers or local interference may influence the actual range.
How do I know when the batteries need to be replaced?
The device features a built-in LED indicator for diagnostics. If the LED begins flashing, it indicates a low battery status, notifying the user that the two AAA batteries should be replaced soon to maintain reliable operation.
In what scenarios is this transmitter most useful?
It is an ideal solution for locations where running data cables is difficult or costly. Common applications include gate automation, industrial PLC controls, manual remote triggers for machinery, and security system integrations.
Can the FOB43301W transmit simultaneously with other devices?
Yes, the transmitter is designed for simultaneous transmission with other devices, allowing it to function effectively in environments where multiple FOB43301W may be active at once.
Is it possible to get a custom design for this product?
Elsema offers Custom Label Design for the FOB43301W. This service is available for bulk orders, with a Minimum Order Quantity (MOQ) of 100 pieces, allowing businesses to brand the device for their specific needs.
What are the power requirements for the transmitter?
The FOB43301W is powered by two standard AAA batteries. This makes maintenance simple, as replacements are readily available and do not require specialized battery types.
