Replacement for FMT-301 and KEY-301

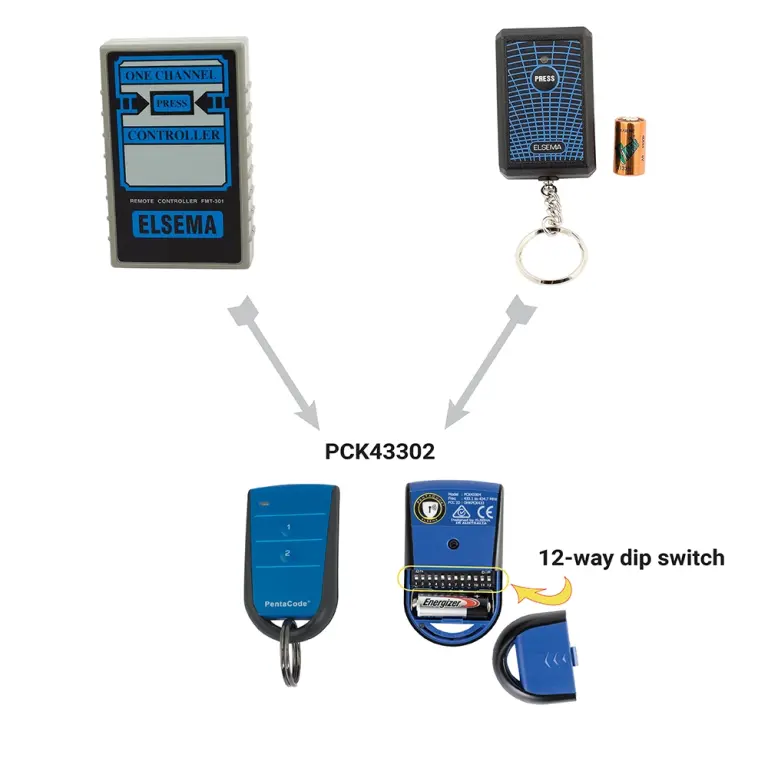

The FMT-301 and KEY-301 have been trusted by customers for over 50 years, providing reliable control for automatic gates, garage doors, and a variety of automation systems. However, they are being replaced with a new version to offer even better performance and security. The PCK43302 is the perfect replacement for the FMT-301 or the KEY-301.
The PCK43302 is a 433MHz remote with a 12-way dip switch. It can easily replace the FMT-301 or the KEY-301, as they use a 12-way dip switch for coding. This similarity allows the user to use the same dip switch combination on the PCK43302.
It is important to note that when changing to a new remote control system for your garage or gate, replacing the entire motor kit is not needed!
Ways to add a PCK43302 to an existing system using FMT-301 or KEY-301

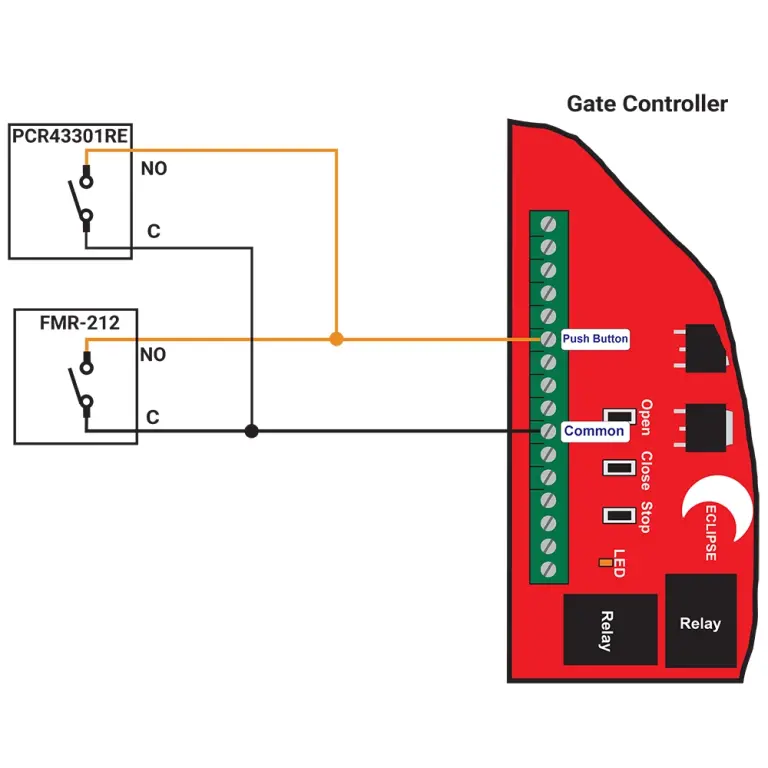

The FMT-301 operates the FMR-212 receiver, while the PCK43302 operates the PCR43301RE. The FMR-212 and the PCR43301RE can be wired together to the same control card to operate a gate or garage door, as shown in Fig. 2. This setup allows the user to use either the PCK43302 or the FMT-301 to operate the gate or door. For a site with multiple remotes, such as an apartment complex, this will minimize costs, as all remotes on the site will not need to be replaced. All future remote controls issued can be the new PCK43302 instead of the old FMT-301 or the KEY-301.
PCR43301RE Wiring diagram
Adding a FOB43301 or PCK43302 to a system using other types of remotes
The FOB43301 or PCK43302 remotes can also be easily added to systems that are using other types of remote controls. The relay output of the PCR43301RE can be wired to the Push Button or OSC input of a gate or door controller, as shown in Fig. 2. Once the FOB43301 or PCK43302 remotes are programmed to the PCR43301RE, they can be used alongside the existing remotes to control the gate or door.
Benefits of using the FOB43301 or PCK43302 over FMT-301 or KEY-301
- Superior operating range
- Cost-Effective
- Utilises advanced FHSS technology
- Reduced radio frequency interference
- Modern robust case design
- Long-term longevity commitment
- Readily available from multiple retailers
- Waterproof version available
- Multiple colour options available
