FOB43301WP, FOB43301LWP, FOB43302WP, FOB43304WP & FOB43305WP
433MHz PentaFOB® Series Waterproof FOB remotes
The Waterproof PentaFOB® works in conjunction with our standard PentaFOB® remotes and PCR series of receivers.
The PentaFOB® WP remote is designed with advanced Frequency Hopping Spread Spectrum. The FHSS technology ensures that every time a button is pressed, the encrypted code is transmitted across five different frequencies simultaneously. The FHSS technology is usually used in very expensive equipment with military, medical applications. This sophisticated method of communication significantly enhances security, making it virtually impossible for the remote control signal to be intercepted or jammed. The use of FHSS not only protects your devices from potential interference but also guarantees reliable operation in environments with high levels of radio frequency noise.
These waterproof FOB remotes withstand harsh conditions and come in 1, 2, 4 and 5 button configurations. Each remote features a durable design with a keyring or lanyard retainer moulded directly into the chassis. High quality ABS plastic reinforces the structure, creating a strong mount that handles daily use with ease.
PentaFOB® WP remotes also meet FCC standards for use in the United States. They suit both residential and commercial applications, offering reliability, strength and performance.
As a result, these remotes are an excellent solution for both residential and commercial applications, combining functionality, strength and regulatory assurance.
PentaFOB® programmer allows you to individually add and delete remotes from the receiver.
The PentaFOB® WP series is an extremely versatile remote control that can be customized through a range or configurations and front design to suit your needs.

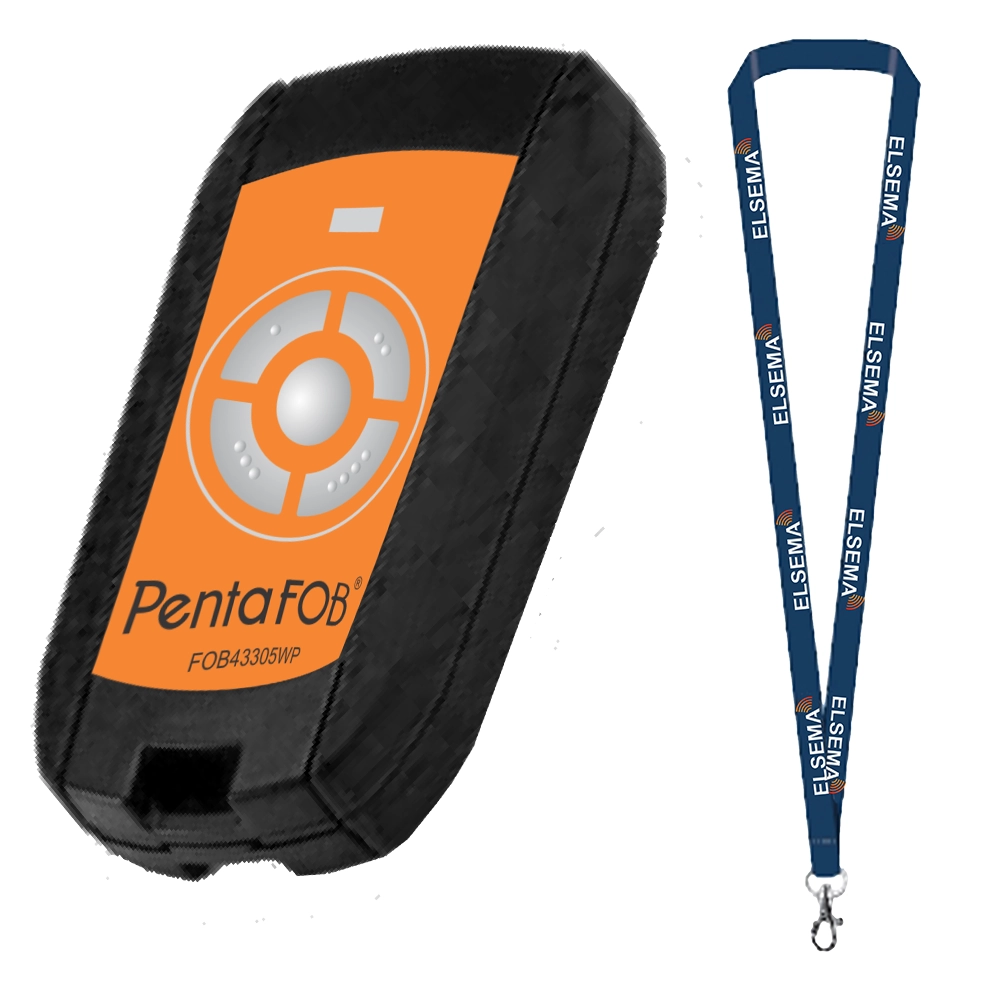

- Lanyard available on request
Technical Specifications
Frequency
433MHz License free band.
Frequency Hopping Spread Spectrum
Applications
Click here
Usable Receivers
PCR433 series
Supply
3-Volt battery. Part number CR2032
Coding
Encrypted coding
Operating distance
Up to 100 metres
Custom Label Design
Yes. MOQ 100 pcs
Channel Options
1, 2, 4 & 5
Compliance
Click here
People also search for Elsema
What is the Waterproof PentaFOB remote?
It is a 433 megahertz keyring remote in an IP66 case that controls gates, doors and devices and works with the PCR Penta receiver series.
How secure is the Waterproof PentaFOB?
It uses frequency hopping spread spectrum with encrypted coding, sending each press on five frequencies to resist jamming and interception.
Which button options are available?
There are 1 button, 2 button, 4 button and 5 button versions to control multiple devices from one remote.
What is the typical operating range?
Up to about 100 metres depending on the site structure and receiver antenna quality.
Which receivers are compatible?
Use the PCR433 Penta series receivers including models with relay outputs and various supply options.
What battery does it use?
A 3 volt CR2032 coin cell with typical service life around two years under average use.
Is the Waterproof PentaFOB suitable for harsh environments?

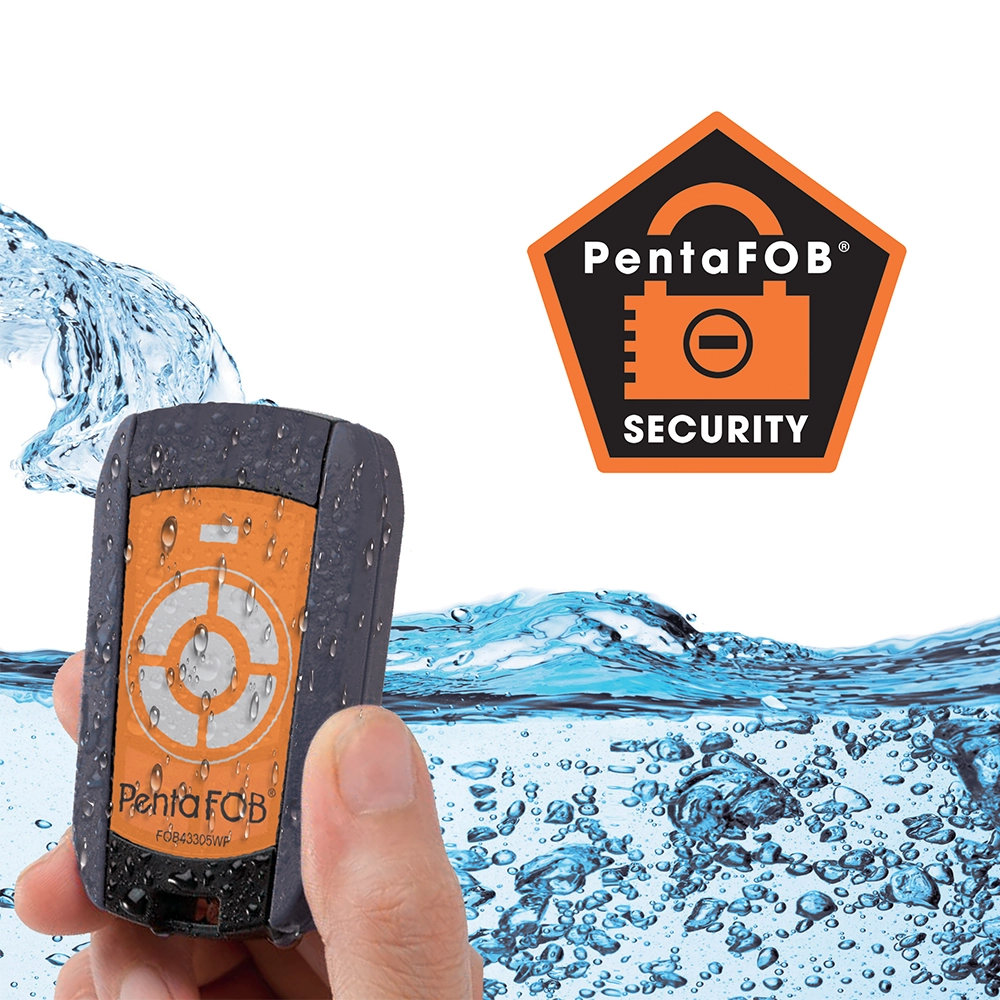

Yes, the IP66 enclosure and moulded keyring or lanyard mount make it ideal around pools, marine areas and dusty or wet sites.
Does it meet international compliance?
Yes, it meets FCC standards for use in the United States and is designed for residential and commercial applications.
Can I customize the look of the remote?
Yes, custom label and membrane options are available with minimum order quantities for branding and colour choices.
How do I program or manage users?
Code remotes remote to receiver or remote to remote and use the PentaFOB programmer to add or delete users as needed.
