MC: Universal Control Card for Automatic Gates
Automatic Gate Control Card for Sliding & Swing Gates
The MC control card, powered by the Eclipse® operating system is an intelligent motor control card which can be used on automatic swing or sliding gates which can be single and double gates. Developed with direct customer feedback and the latest technology, this control card offers a user friendly experience from installation to operation. Its design focuses on simplicity and efficiency, featuring a large LCD display that provides clear, step by step instructions. With its 1 touch control, users can easily navigate settings and adjust the system with minimal effort.
The control card has 2 versions:
- MC – up to 120W motors
- MCv2 – Up to 180W motors
What sets the MC – automatic gate control card apart is its ability to handle a wide range of gate types, making it a go to choice for residential, commercial and industrial applications. Whether you’re managing a single gate or a more complex double gate system with or without Limit switches, this control card delivers reliable performance every time. The MC card is also highly adaptable and can be converted into a solar kit, offering a sustainable solution for gates in areas where electricity is limited or unavailable.
In addition to its functionality, the MC – automatic gate control card is competitively priced, offering exceptional value without sacrificing quality. It’s a cost effective solution for those seeking a high performing, durable and adaptable gate control system. As one of the most popular cards available, it continues to stand out for its reliability and user centric design, making it an ideal choice for anyone looking to upgrade their gate automation system.
Technical Specifications
Input Voltage
12 or 24 Volts AC/DC
Motor Voltage
12 or 24 Volts DC
Gate Type
Single or Double
Display & Control
Large LCD with
One Touch Control
Gate Limit Options
Limit Switch or
Current Sensing
Usable Keyring Remotes
PentaFOB® series
PentaCODE® series
Control Card Dimensions
140 x 130 x 45 mm
Operating System
Eclipse Operating System (EOS)
Enclosed Versions
View Available Options here
Elsema: Frequently Asked Questions
What makes the MC control card universal?
The MC control card is designed to be highly versatile, supporting both single and double gate configurations with 12 or 24V motors. It can be used for various gate types, including sliding, swing gates, cantilever and boom gates across residential, commercial, and industrial applications.
What is the Eclipse® Operating System (EOS)?
The Eclipse® Operating System is the intelligent firmware that powers the MC control card. It is designed to be user-friendly, providing a simplified setup process and advanced features through a large LCD display with One Touch control.
How do I choose between the MC and MCv2 models?
The choice depends on the power requirements of your gate motors:
- MC: Suitable for motors up to 120 Watts.
- MCv2: Designed for larger motors up to 180 Watts.
Can these control cards be used for solar-powered gates?
Yes, the MC series is highly adaptable and can be integrated into solar kits. This makes it an ideal solution for remote locations or areas where mains power is unavailable or difficult to install.
What are the options for setting gate travel limits?
The MC card offers flexibility in how the gate’s travel is managed. You can use traditional physical limit switches (to MC card or series limit) or utilise the card’s built-in current sensing (obstruction detection) technology to determine the open and closed positions.
What type of input and motor voltages does the MC card support?
The MC is compatible with an input voltage of 12 to 24 Volts AC or DC, and it provides a corresponding 12 or 24 Volts DC output to the gate motors.
How does the LCD display assist with installation?
The large LCD display provides clear, step-by-step instructions during the setup process. This minimises the need for complex manuals during basic configuration and allows for easy navigation of settings via the one-touch control interface.
Which remote controls can be paired with the MC card?
The card features a built-in receiver compatible with Elsema’s range of keyring remotes, including the PentaFOB® and PentaCODE® series.
Is there a version of the MC card that comes with an enclosure?

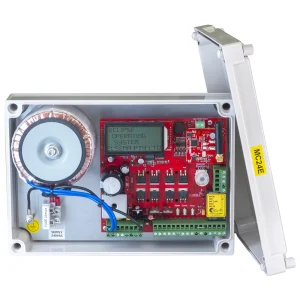

Yes. While the base MC card is available for mounting inside existing motor housings, Elsema also offers enclosed versions such as the MC12E (for 12V motors) and MC24E (for 24V motors) to protect the electronics from the elements.
Does the system support battery backup?
Yes, for installations where power reliability is critical, kits like the MC24E2.4 are available, which include the control card housed in an enclosure with an integrated battery backup system to ensure operation during power outages. The MC card also has a built-in battery charger for backup batteries.
