Light Industrial Sliding Gate Motor Kit with Battery Backup

Features

  • Ideal for light industrial sliding gates

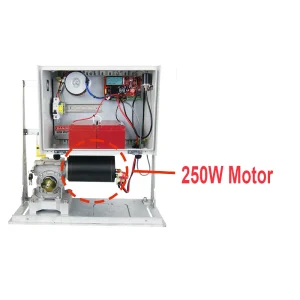

  • Powerful 250Watt motor
  • No limitation on gate length
  • Battery backup included
  • Soft start and soft stop
  • Contactless limit switch
  • Adjustable anti-crush

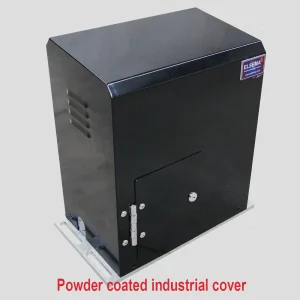

  • Power coated metal cover
  • Eclipse® Operating System
  • Compatible with G4000 4G Gate Opener

Available Versions

  • iS1500LV Motor kit (Battery included)

Technical Specifications

Gate Size
1,200Kg

Motor Voltage
24Volts DC

Motor Size
250W

Travel Speed
22m/min (367mm/sec)

Limit Switch Type
Contactless

Remote Storage Capability
Unlimited

Input Voltage
240Volts AC

Operating System
Eclipse® Operating System (EOS)

Dimension
620 x 545 x 320 mm

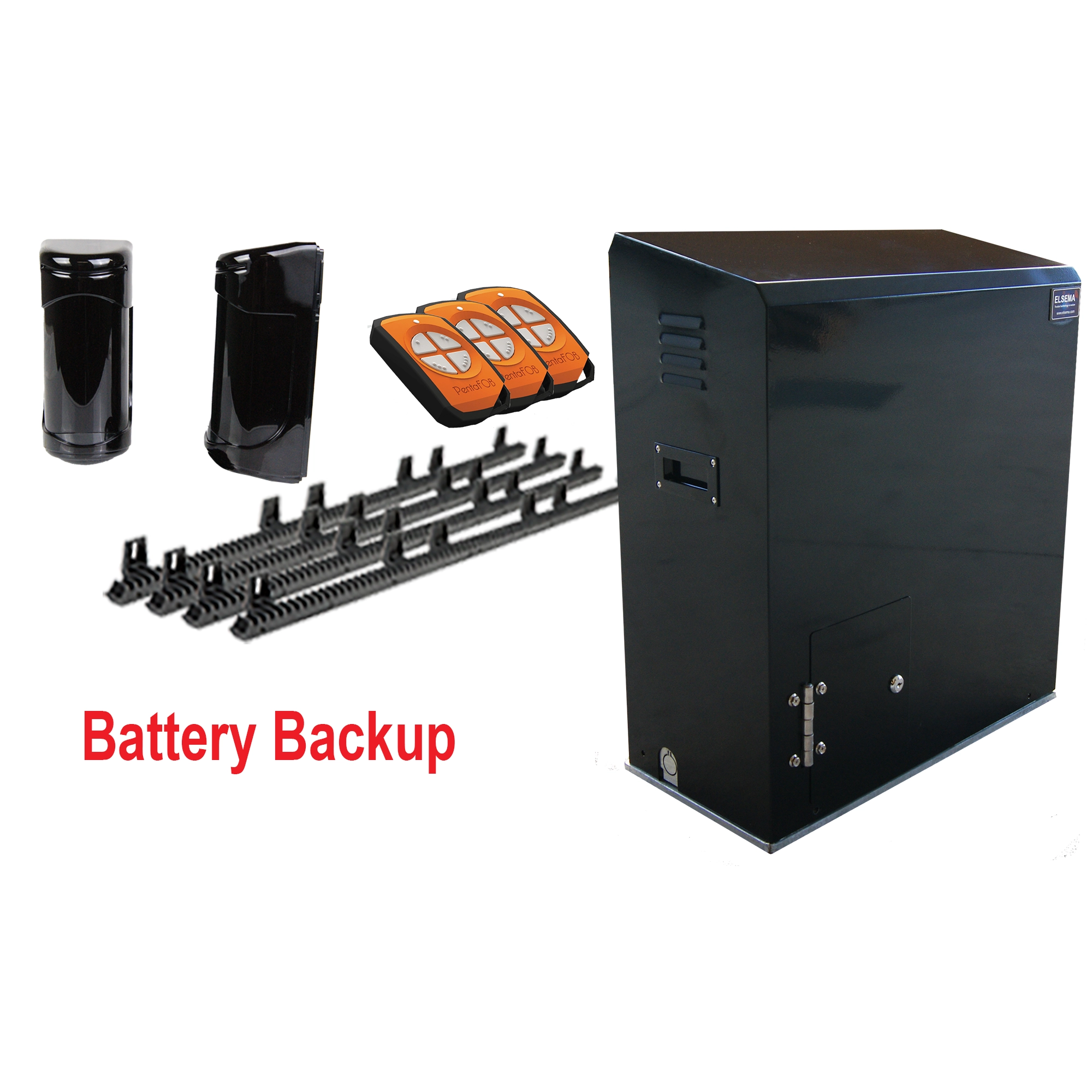

Kit Contents

iS1500LV

  • 1 x Motor with Eclipse® controller card
  • 3 x PentaFOB®  keyring remotes
  • 4 x Reinforced gear rack with mounting screws
  • 1 x Long range reflector type safety beam
  • 2 x 15Ah Backup batteries

Light Industrial Sliding Gate Motor Kit with Battery Backup

The industrial sliding gate motor kit is engineered to deliver powerful, reliable automation for light duty gates in commercial and industrial environments. Designed specifically for light industrial sliding gates, this motor kit ensures seamless operation, making it ideal for warehouses, factories, and other demanding applications.

Equipped with a battery backup system, the kit guarantees uninterrupted operation, even during power outages, ensuring that your sliding gate remains functional at all times. This feature provides peace of mind for businesses that require constant and secure access control, especially in high traffic areas.

One of the standout features of this motor kit is its compatibility with the G4000 4G Gate Opener, allowing access with a free phone call. With this integration, users can operate their gate from anywhere, giving real time control and added flexibility for modern access management systems. This makes it an ideal solution for businesses seeking advanced, remote controlled gate automation.

Safety is paramount, and this motor kit includes anti crush technology, preventing excessive force during gate operation. The obstruction detection system adds another layer of security by automatically stopping and reversing the gate if an object is detected, ensuring the safety of vehicles and pedestrians. These features are crucial for gates in high traffic areas, where safety and efficiency must be maintained.

Additionally, the kit supports unlimited remote storage, allowing facilities to manage numerous remotes without restrictions. This is especially beneficial for businesses with a large workforce or frequent visitors.

Designed for easy installation, the iS1500LV motor kit comes with clear instructions, minimizing downtime and ensuring a smooth setup process. This kit delivers robust performance, advanced safety features and the convenience of remote gate control.

Enhance your property’s security and convenience with automatic gates. Learn more about different gate types, features and safety in this detailed article.

People also search for Elsema

What is the iS1500LV used for?
It is a light industrial sliding gate motor kit with built-in battery backup designed for warehouses, factories and commercial sites.
It is rated for sliding gates up to 1200 kilograms with a powerful 250 watt motor for demanding use.

Typical travel speed is about 22 metres per minute, roughly 367 millimetres per second.

Yes, it comes with two 15 amp hour backup batteries to keep the gate running during power outages.
The drive motor is 24 volts DC with a 240 volts AC input supply to the controller and charger.

Yes, it uses a contactless limit switch, adjustable anti crush and obstruction detection for safe operation.

Yes, it works with the G4000 4G gate opener for free call entry and remote user management.

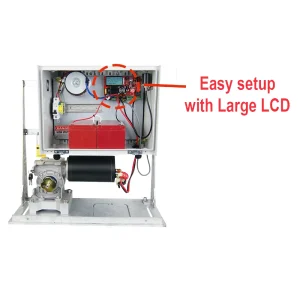

The kit runs on Elsema’s Eclipse operating system with menu based setup and LCD interface for easy configuration.
There is no limitation on gate length when installed with appropriate racks and supports per site requirements.
Download the iS1500LV installation manual and the Eclipse MCS controller manual from the product resources.
