Light Industrial Sliding Gate Motor Kit - iS1400

Features

  • Ideal for light industrial sliding gates
  • High torque, yet compact design
  • No limitation on gate length
  • Optional Lithium battery backup
  • Soft start and soft stop
  • Contactless limit switch
  • Adjustable anti-crush
  • Powder coated metal cover
  • Eclipse® Operating System
  • Compatible with G4000 4G Gate Opener

Available Versions

  • iS1400B Motor kit with Lithium Battery

Technical Specifications

Gate Size
1,200 kg

Motor Voltage
24 Volts DC

Motor Size
250W

Travel Speed
22m/min (367mm/sec)

Limit Switch Type
Contactless

Remote Storage Capability
Unlimited

Input Voltage
240 Volts AC

Operating System
Eclipse® Operating System (EOS)

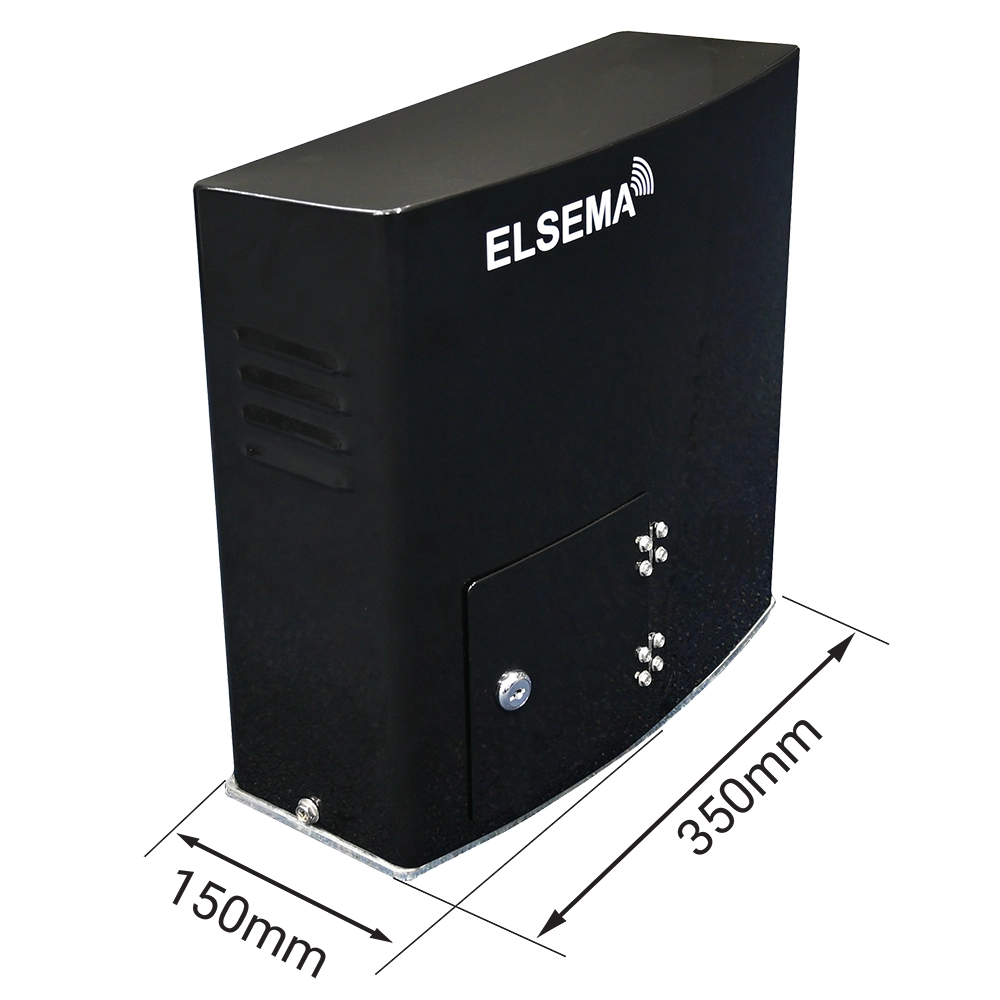

Dimension
350 x 150 x 360 mm

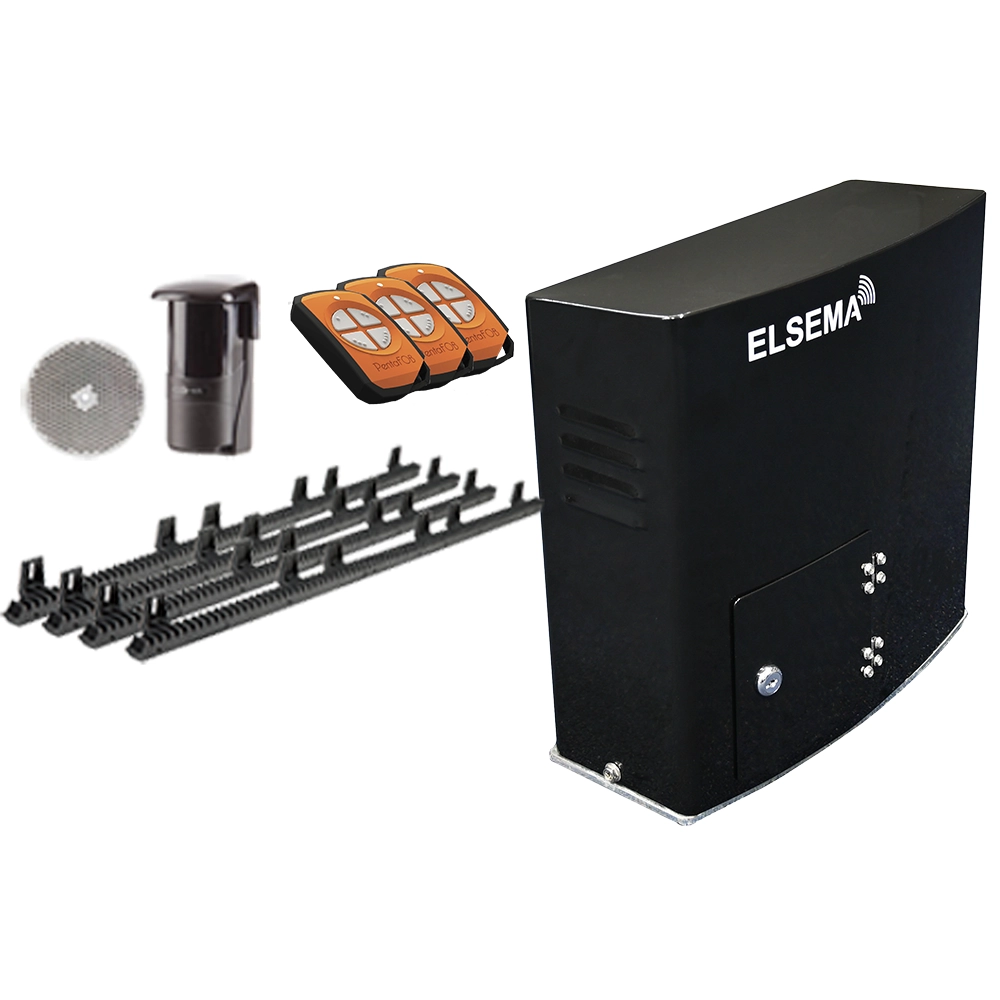

Kit Contents

iS1400

  • 1 x Motor with Eclipse® controller card
  • 3 x PentaFOB®  keyring remotes
  • 4 x Reinforced gear rack with mounting screws
  • 1 x Long range reflector type safety beam

iS1400B

  • 1 x Motor with Eclipse® controller card
  • 3 x PentaFOB®  keyring remotes
  • 4 x Reinforced gear rack with mounting screws
  • 1 x Long range reflector type safety beam
  • Lithium battery backup

Light Industrial Sliding Gate Motor Kit with Battery Backup

This industrial sliding gate motor kit is engineered to deliver powerful, reliable automation for light-duty gates in commercial and industrial settings. Specifically designed for light industrial sliding gates, the iS1400 motor offers high torque performance in a slimline footprint, ensuring smooth and efficient operation without taking up excessive space, ideal for warehouses, factories and other demanding environments.

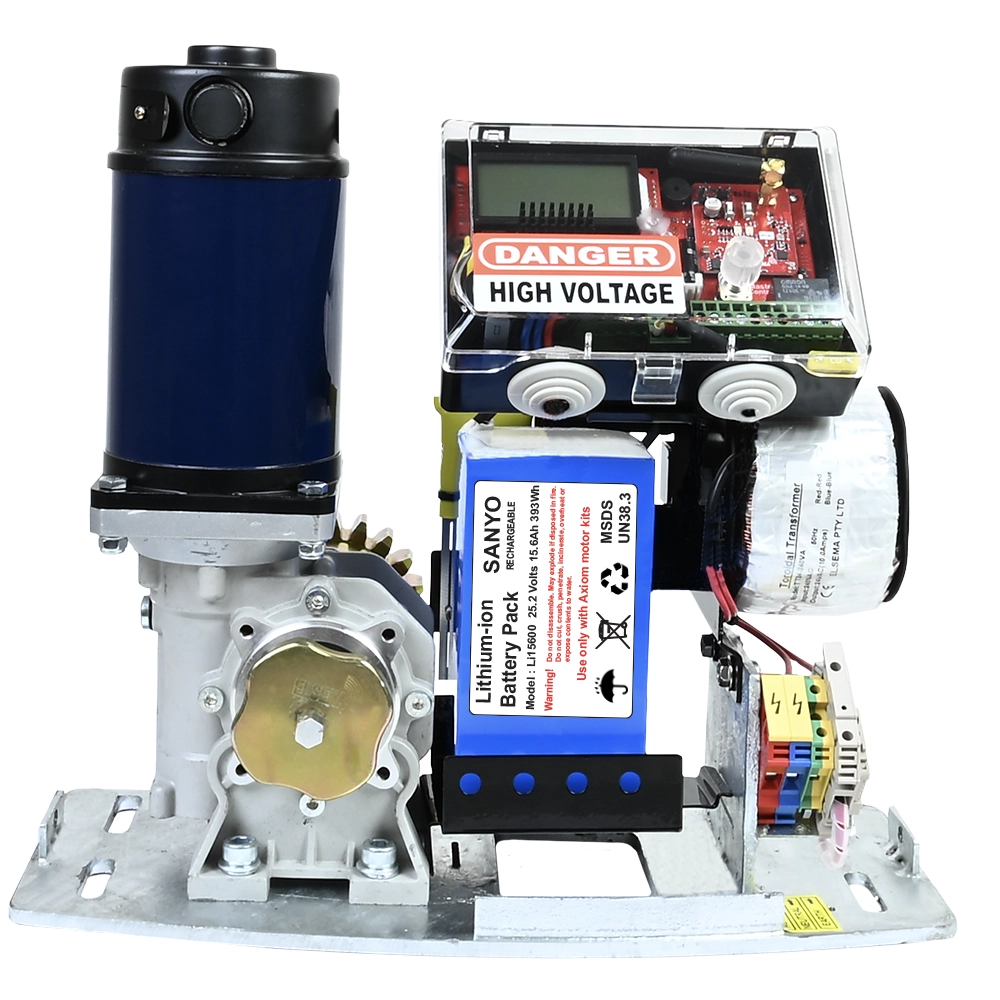

An optional battery backup system is available in the iS1400B kit, featuring a high performance lithium battery. This ensures that your gate remains operational even during power outages, providing peace of mind for businesses that require continuous, secure access control, particularly in high traffic areas.

The motor kit also integrates seamlessly with the G4000 4G Gate Opener, allowing users to operate the gate via a free phone call. This remote access capability gives real-time control and flexibility, making it a modern solution for businesses seeking advanced, remote-controlled gate automation.

Safety is a top priority. The iS1400 includes anti-crush technology to prevent excessive force during operation, while its obstruction detection system automatically stops and reverses the gate if an object is detected. These features ensure the protection of vehicles and pedestrians, which is critical in busy commercial environments.

Additionally, the kit supports unlimited remote storage, enabling facilities to manage a large number of remotes without restrictions, perfect for workplaces with many employees or frequent visitors.

Designed for straightforward installation, the iS1400 comes with clear instructions to minimize downtime and ensure a smooth setup. With its high torque, slimline design, advanced safety features, and flexible remote control options, this motor kit delivers reliable performance for light industrial sliding gates.

Enhance your property’s security and convenience with automatic gates. Learn more about different gate types, features and safety in this detailed article.

People also search for Elsema

What is the iS1400 used for?

It is a light industrial sliding gate motor kit with optional battery backup designed for warehouses, factories and commercial sites.

It is rated for sliding gates up to 1200 kilograms with a powerful 250 watt motor for demanding use.

Typical travel speed is about 22 metres per minute, roughly 367 millimetres per second.

Yes, it has option for backup batteries to keep the gate running during power outages.

The drive motor is 24 volts DC with a 240 volts AC input supply to the controller and charger.

Yes, it uses a contactless limit switch, adjustable anti crush and obstruction detection for safe operation.

Yes, it works with the G4000 4G gate opener for free call entry and remote user management.
The kit runs on Elsema’s Eclipse operating system with menu based setup and LCD interface for easy configuration.
There is no limitation on gate length when installed with appropriate racks and supports per site requirements.

Download the iS1400 installation manual and the Eclipse MCS controller manual from the product resources.
